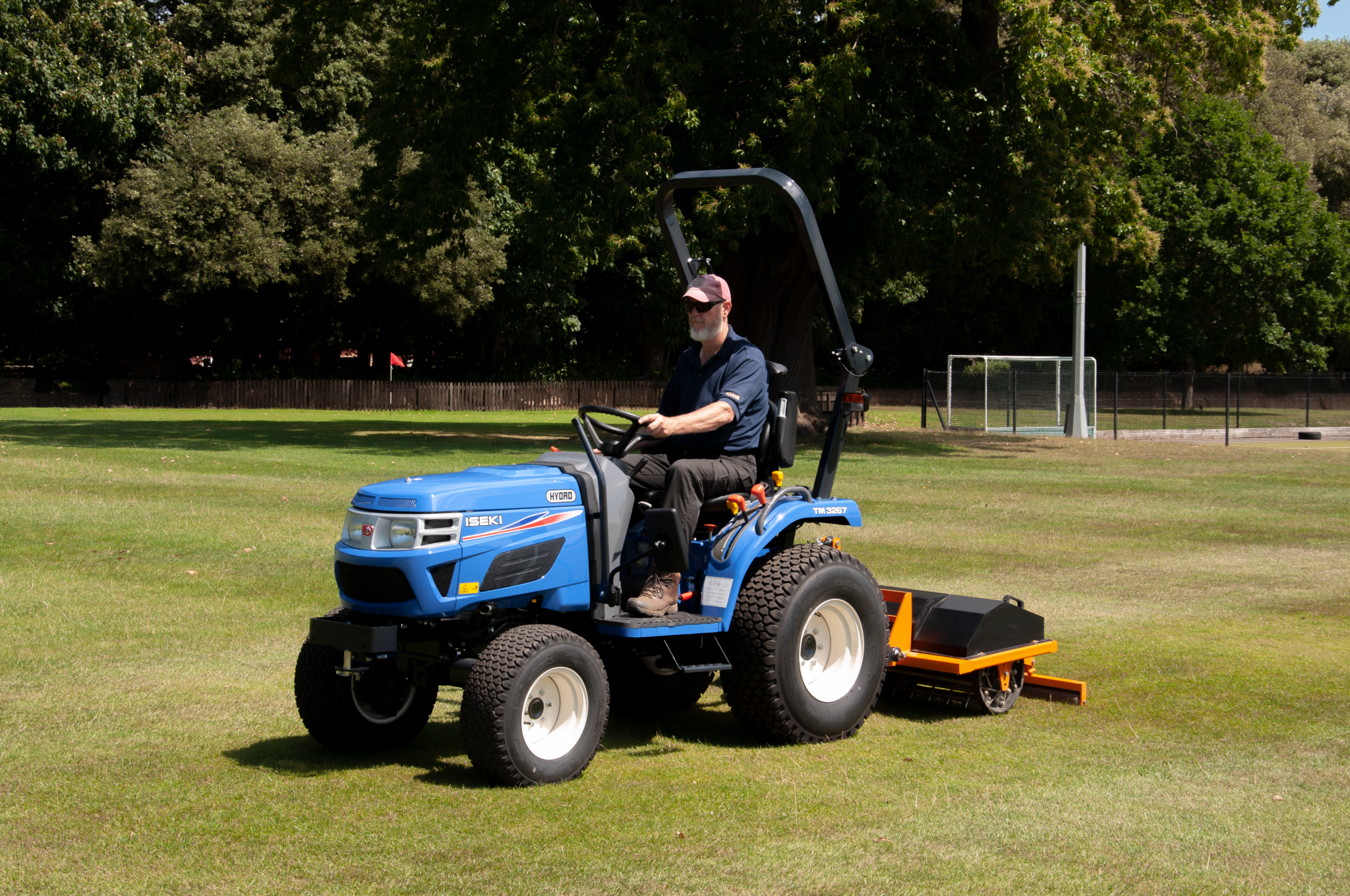

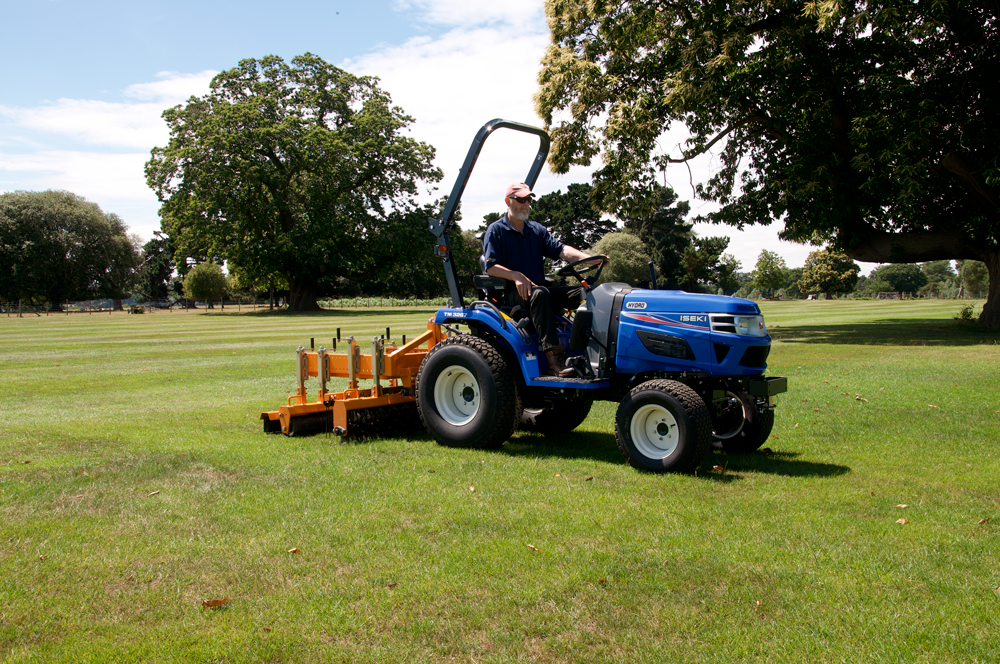

TM Series Tractor

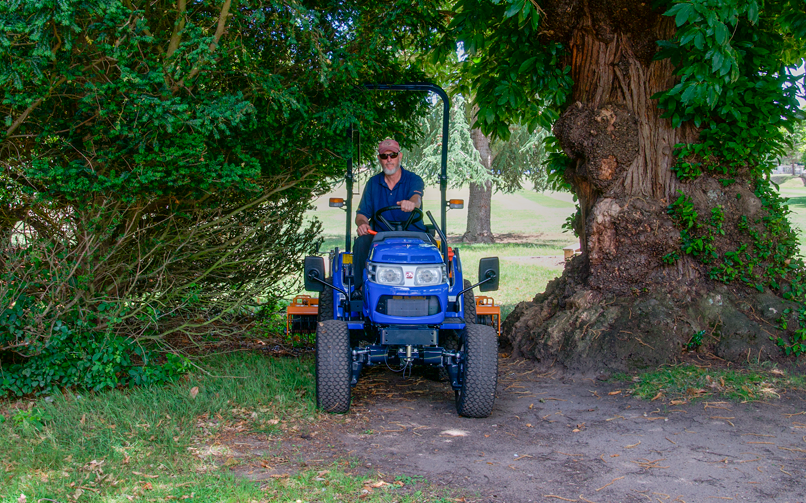

The TM Series tractor is a compact, lightweight and easily manoeuvrable machine which is ideal for tight spaces. The TM3217 and TM3267 machines are well suited to glasshouses and horticultural projects.
Alternatively, they work well on natural and artificial turf areas, such as gardens and schools where a high lift capacity is required to operate a variety of implements without causing damage to the turf. Powered by a reliable high capacity 1,123cc or 1,498cc three-cylinder diesel, water cooled engine. Available with Stage V Compliant 19hp or 25hp engines.
TM3187 Mechanical / TM3217 Mechanical / TM3217 HST / TM3267 Mechanical / TM3267 HST
Description
• Easy-to-read illuminated dashboard with rev counter, fuel gauge plus PTO controls located to the right-hand side of the operator for ease of operation.
• Three-point linkage – highly capable lift capacity of 600kg up to 800kg, depending on the machine.
• Simple access for servicing and maintenance – hinged bonnet with clip fit side panels and front cowl allow excellent access to perform regular maintenance checks on the engine and service points.
• Operator comfort – fully adjustable seat, complete with armrests, plus ergonomically-located controls for easy use.
• Road legal – road lighting, rear view mirrors and seven-pin trailer socket standard on all models.
• Available in both the versatile manual transmission and hydrostatic transmission.

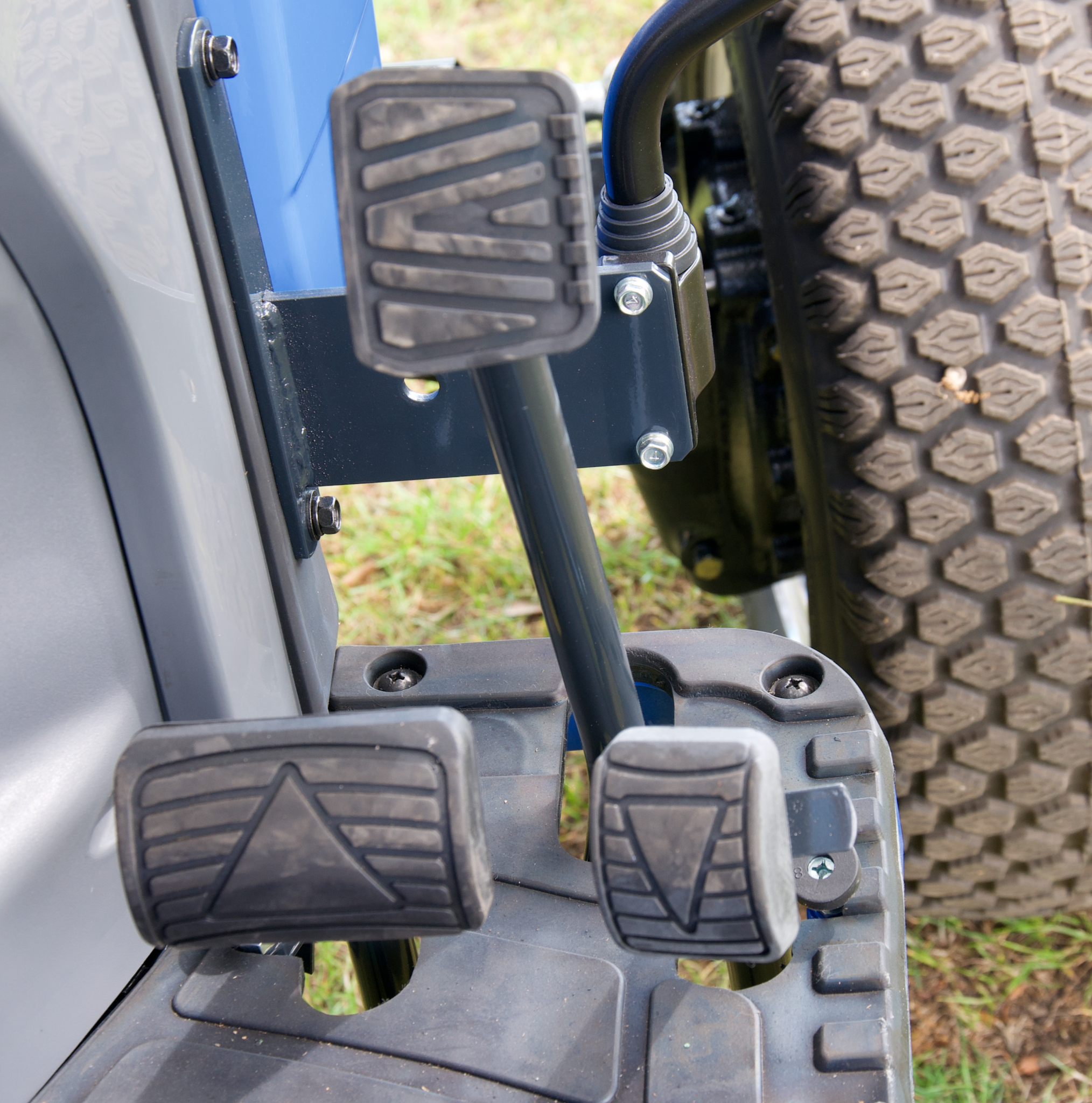

• Hydrostatic Transmission – ideal for working with loaders or mowing where constant speed changes and changes in direction are required.
• Versatile Manual Transmission – total operator control, with synchronised forward and reverse shuttle.
• Eight forward and eight reverse gears – perfect for quick and easy changes while working.
• Optional Mid-Mount Mower – available in 54†rear, side and mulching decks plus a larger 60†side discharge.
• Three-point rear linkage allows for a collector system to be fitted for use in conjunction with a side discharge deck and hose kit.
• Option of low or high dump to suit the disposal facilities. The collector also has a large capacity of 550litre or 600ltr with high tip.

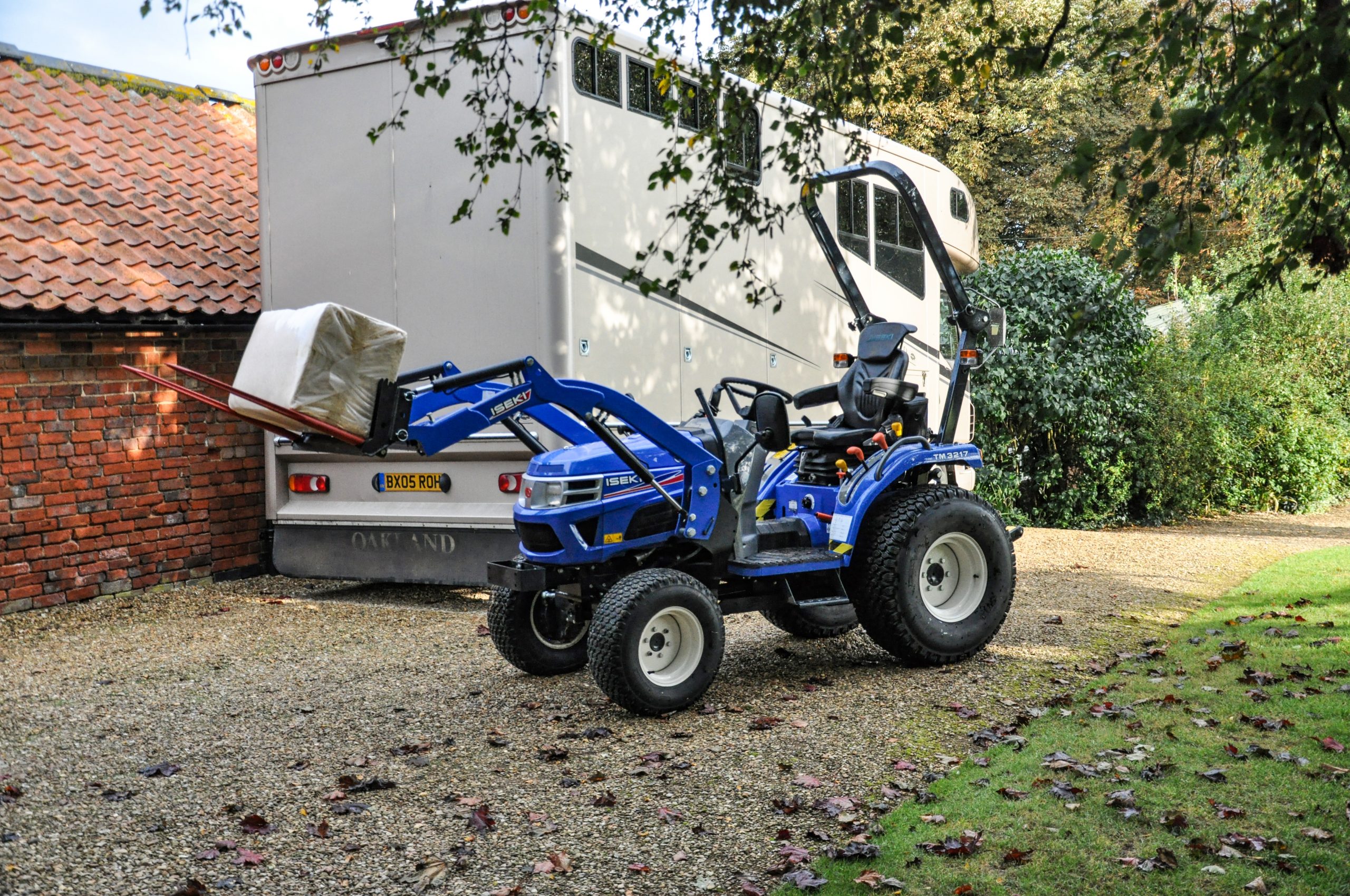

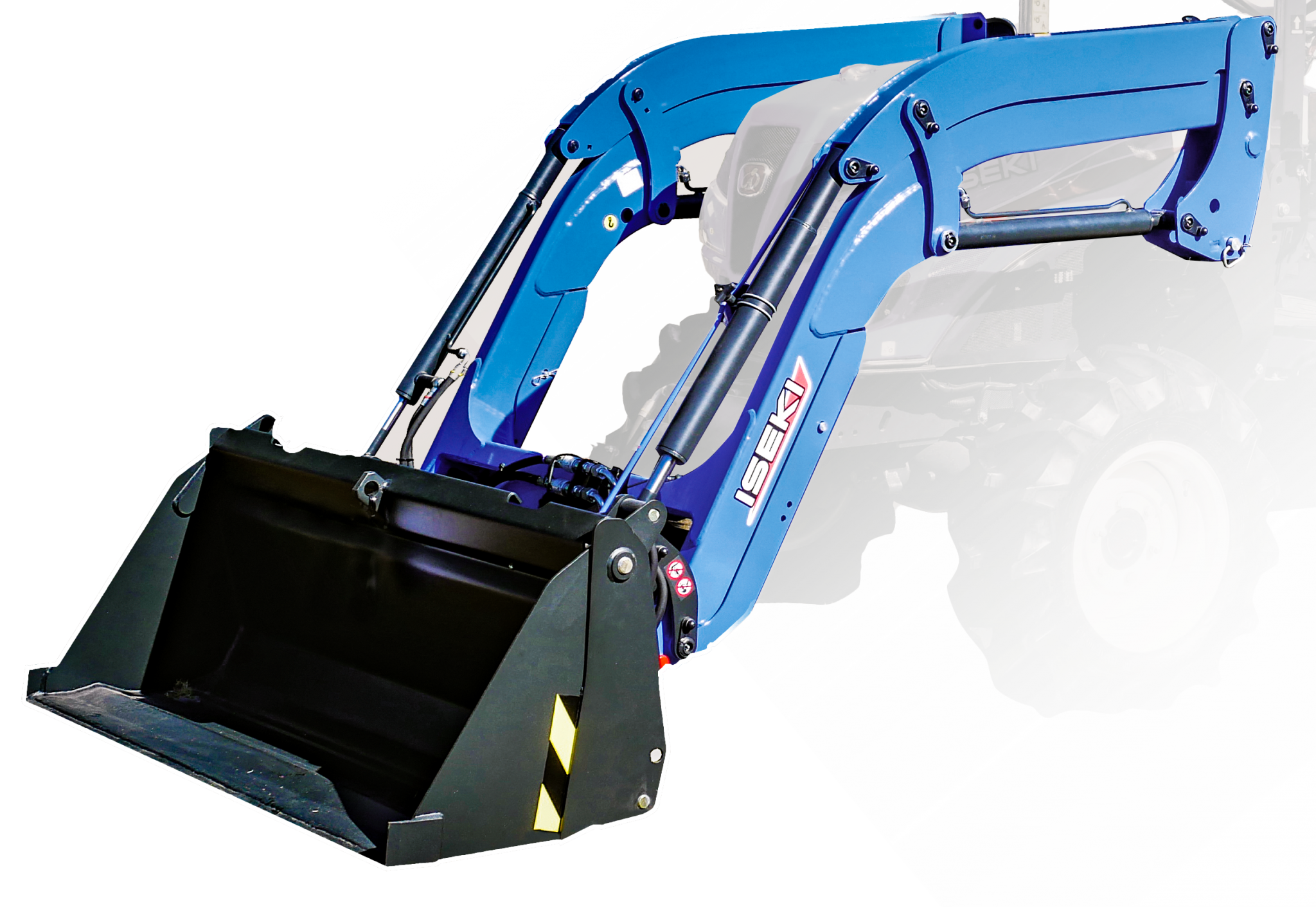

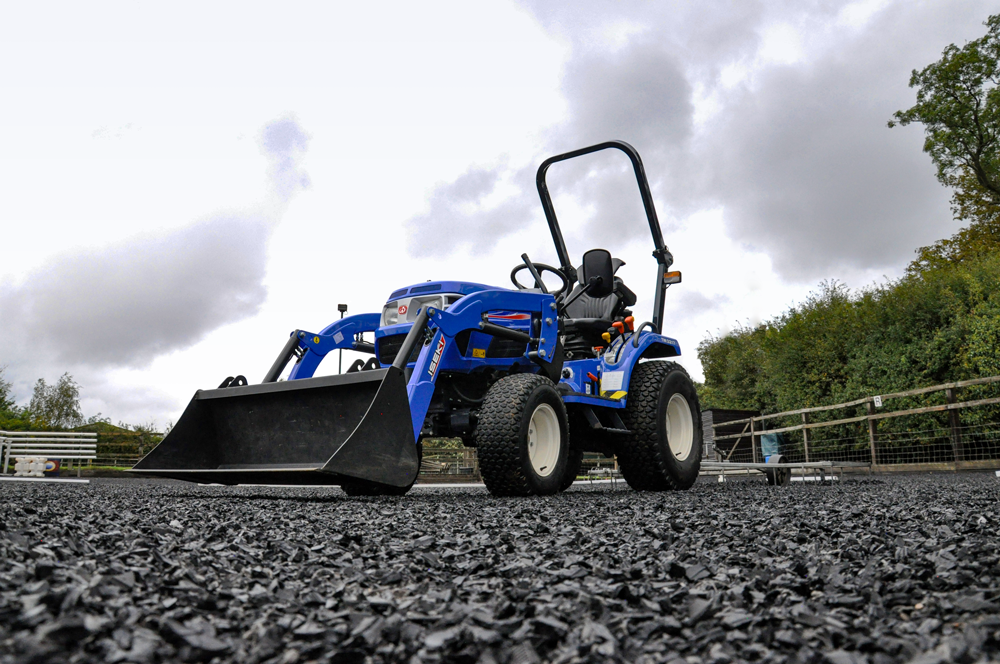

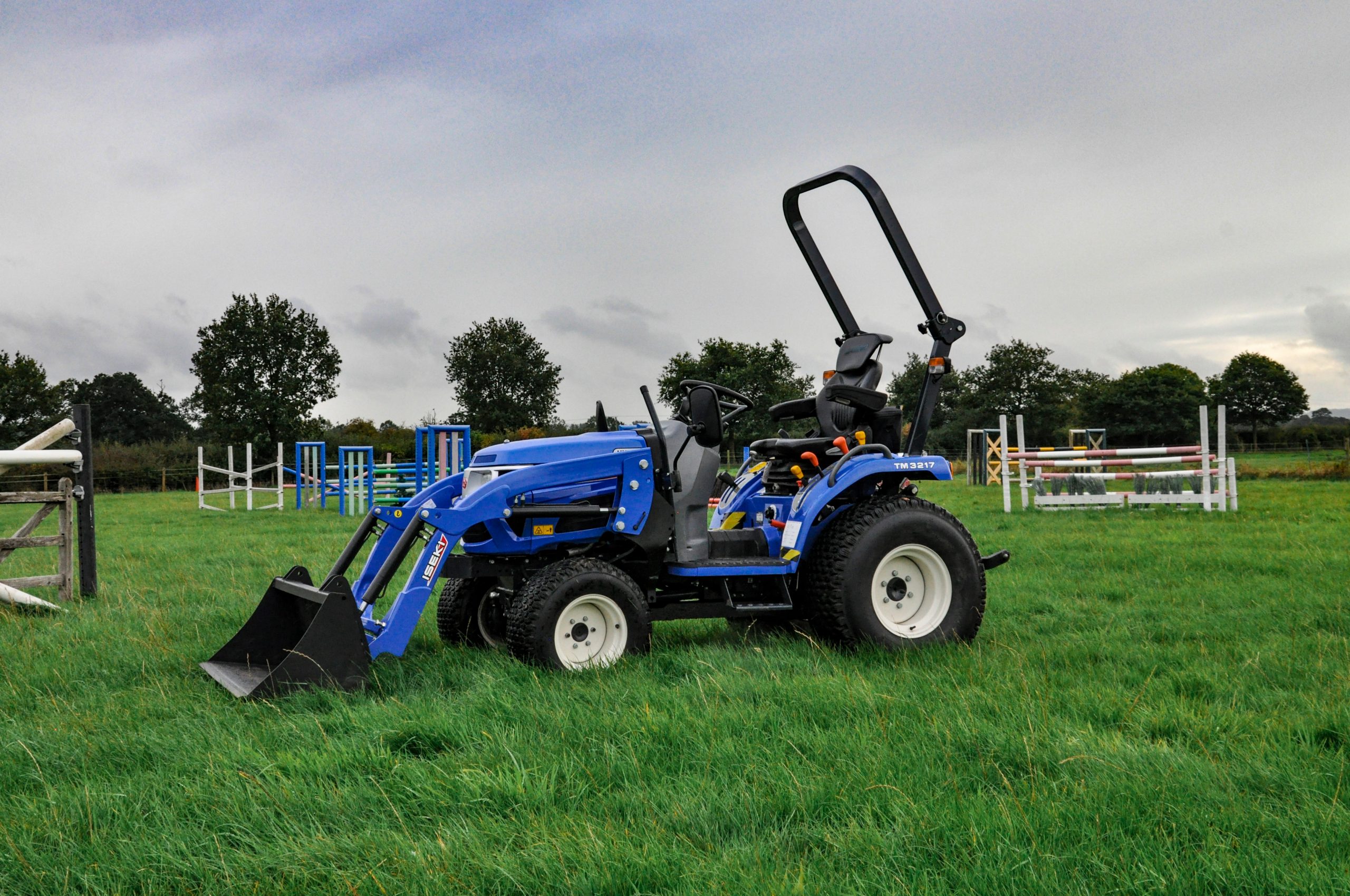

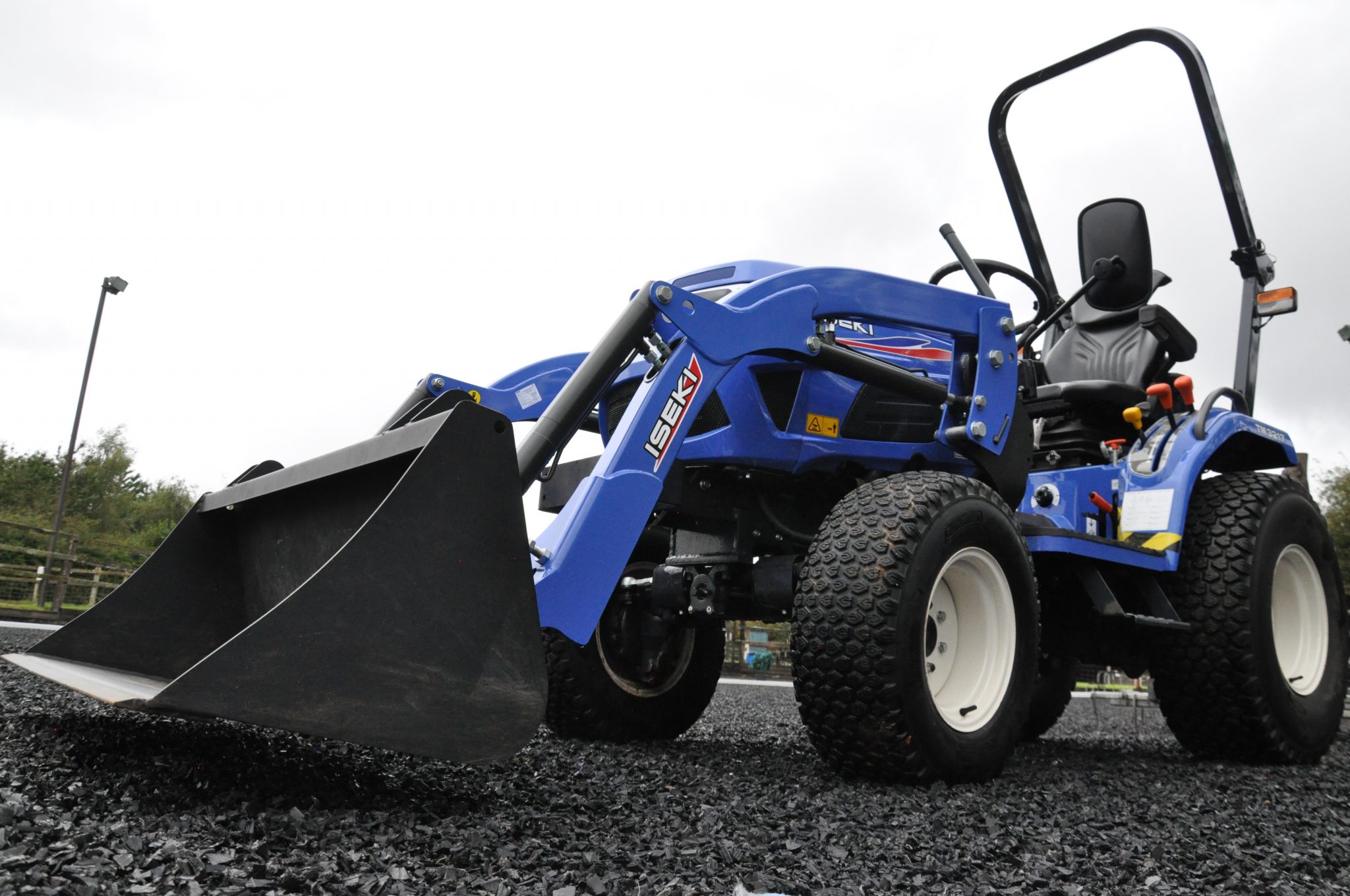

• Front loader option
TM3187 Mechanical
Powered by a three cylinder 1123cc diesel indirect injection, overhead valve engine, delivering 14.3kW (19 hp) to the four-wheel-drive system. Has a 28ltr fuel tank with a locking differential as standard, plus a lift capacity of 600kg. Compact dimensions with rear foldable Rollover Protective Structures (ROPS). Length 2.815m, width 1.1m and weighing 835kg. The machine has a 0.25m ground clearance.
TM3185 Mechanical
The TM3185 is the most compact tractor in the TM range but it’s no lightweight when it comes to completing the tough tasks. Its compact dimensions make it the ideal machine for navigating restricted environments. Powered by a 16hp engine, the tractor is complete with four-wheel-drive, plus locking differential, power steering, rear Power Take Off (PTO). It also has the option for a front loader to be attached. The TM3185 is only available with mechanical F6/R2 transmission.
TM3217 HST
Powered by a three cylinder 1123cc diesel indirect injection, overhead valve engine, delivering 14.3kW (19 hp) to the four-wheel-drive system. Three-speed HST transmission with a forward speed up to 14.4mph. Has a 28ltr fuel tank with a locking differential as standard, plus a lift capacity of 600kg. Compact dimensions with rear foldable Rollover Protective Structures (ROPS). Length 2.815m, width 1.1m and weighing 835kg. The machine has a 0.25m ground clearance.
TM3267 Mechanical
Powered by a three cylinder 1498cc diesel indirect injection, overhead valve engine delivering 18.2kW (24.4hp). Three-speed mechanical transmission with a forward speed up to 15.2mph. Has a 28ltr fuel tank with a locking differential as standard, plus a lift capacity of 600kg or 800kg with high capacity lift kit. Compact dimensions with rear foldable Rollover Protective Structures (ROPS). Length 2.88m, width 1.1m and weighing 870kg. The machine has a 0.25m ground clearance.
TM3267 HST
Powered by a three cylinder 1498cc diesel indirect injection, overhead valve engine delivering 18.2kW (24.4hp). Three-speed HST transmission with a forward speed up to 15.2mph. Has a 28ltr fuel tank with a locking differential as standard, plus a lift capacity of 600kg or 800kg with high capacity lift kit. Compact dimensions with rear foldable Rollover Protective Structures (ROPS). Length 2.88m, width 1.1m and weighing 870kg. The machine has a 0.25m ground clearance.
